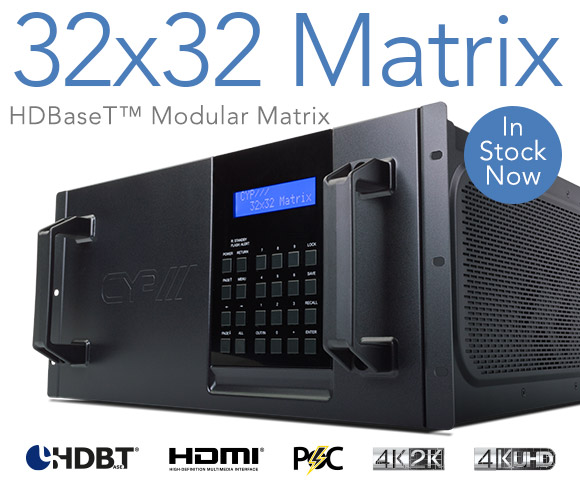

CYP 32x32 Modular Matrix Chassis In Stock

CYP Modular Matrix Configurator

Adding to its growing range of Modular Matrices, we are delighted to announce the availability of our latest chassis - the 32x32 Modular Matrix. Following on from the success of its 3U 16x16 Modular Matrix Chassis, the 5U 32x32 can be fitted with any combination of up to four input modules and four output modules, offering unparalleled levels of flexibility and performance for systems integrators and installers in any multi-zone AV environment.

Integrators can select from the following modules:

Input Modules

  • 8 x HDMI Input Module with 4K resolution support
  • 8 x HDMI Input Module
  • 8 x VGA Input Module
  • 8 x DVI Input Module

Output Modules

  • 8 x HDBaseT Output Module - 4-Play/100m
  • 8 x HDBaseT Output Module - 3-Play/60m with PoC (Power over Cable)
  • 8 x HDMI Output Module with 4K resolution support
  • 8 x HDMI Output Module
  • 8 x DVI Output Module

Similar to its 16x16 sibling, the 32x32 chassis comes supplied with dual removable internal PSU's, which allow for easy inspection and maintenance with zero down time. A DVI output for a local monitor allows installers to easily monitor, test, and configure the Inputs and Outputs on installation, whilst 2-Way IR, RS-232 and IP control allow users to access and control the matrix remotely and for the easy integration with third-party control systems. CYP provide 'free to download' drivers for Crestron, RTI, AMX, Elan, and Control 4 systems.

To help with the specification process, CYP has recently launched its online Modular Matrix Configuration Tool. Accessible via the CYP website, this useful tool enables integrators to specify their requirements, and graphically build a 32 x 32 or 16 x 16 matrix using the online step-by-step wizard. A bill of parts is generated which can then be emailed for reference and easily forwarded on to their chosen CYP distributor, safe in the knowledge that all components have been selected for a fully-customised matrix that CYP builds to the installers specifications.
